~Metrological Test Station for CCD Arrays~


Differntial measurement system for in-cryostat 9-CCD flatness measurement. Uses two Keyence absolute-distance laser triangulation sensors to compare the surface height of the surface under test (CCD array imaging surface) to an optical reference flat. Concept: Peter Takacs.



Diagram of test station.

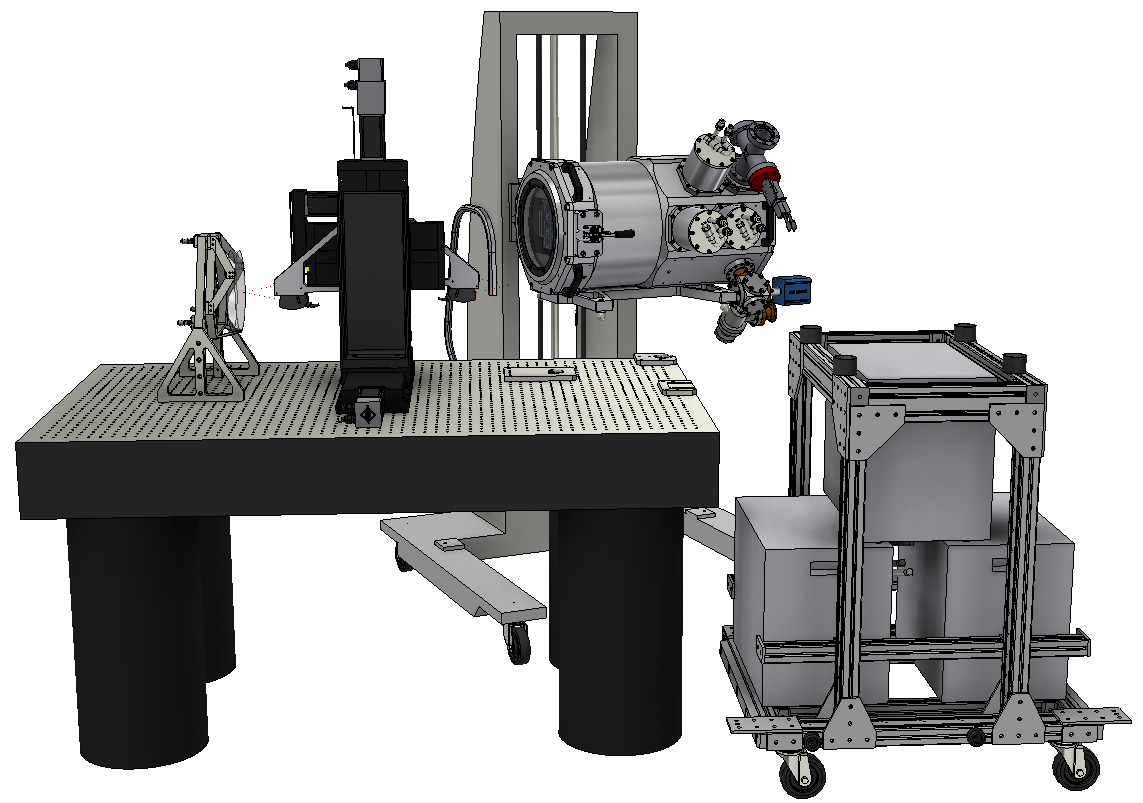

Another view showing Test/Commissioning Cryostat and utility cart being lowered onto stand.


optical reference stage

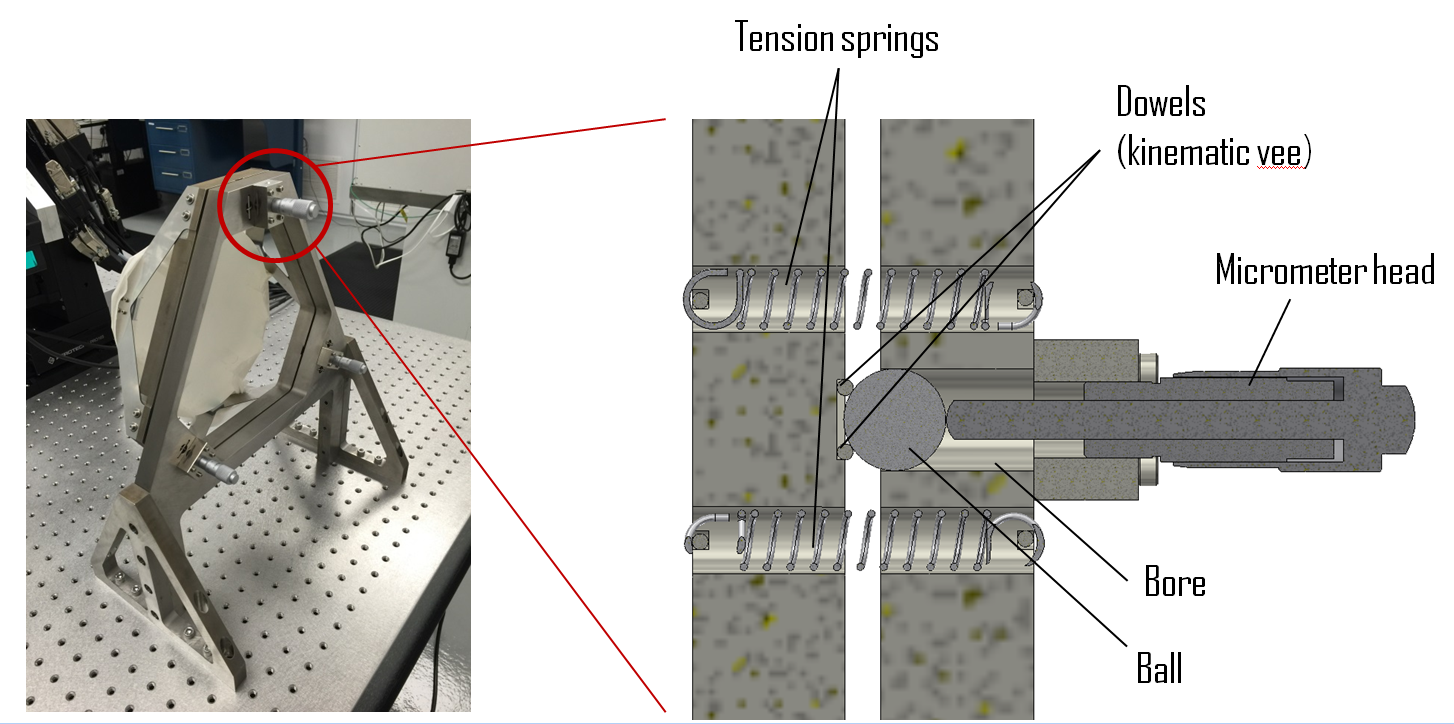

Detail of kinematic adjustment mechanism on optical reference stage.

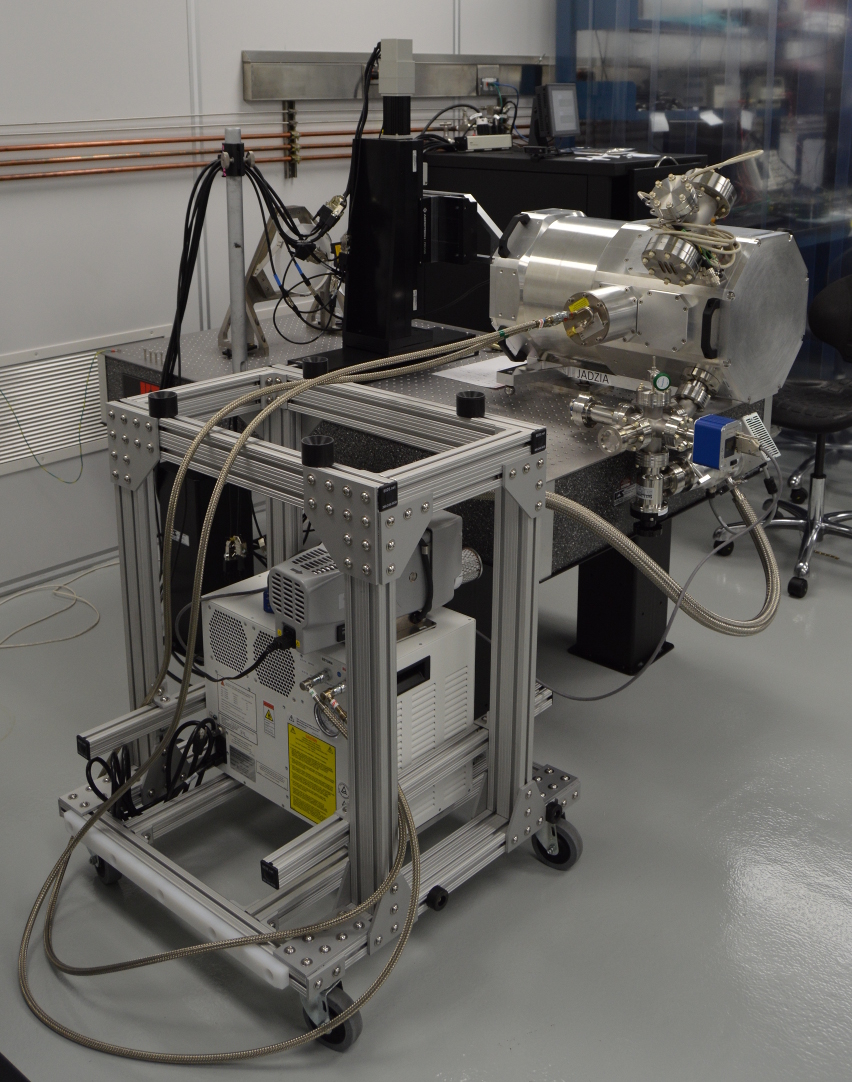

In operation with Jadzia.

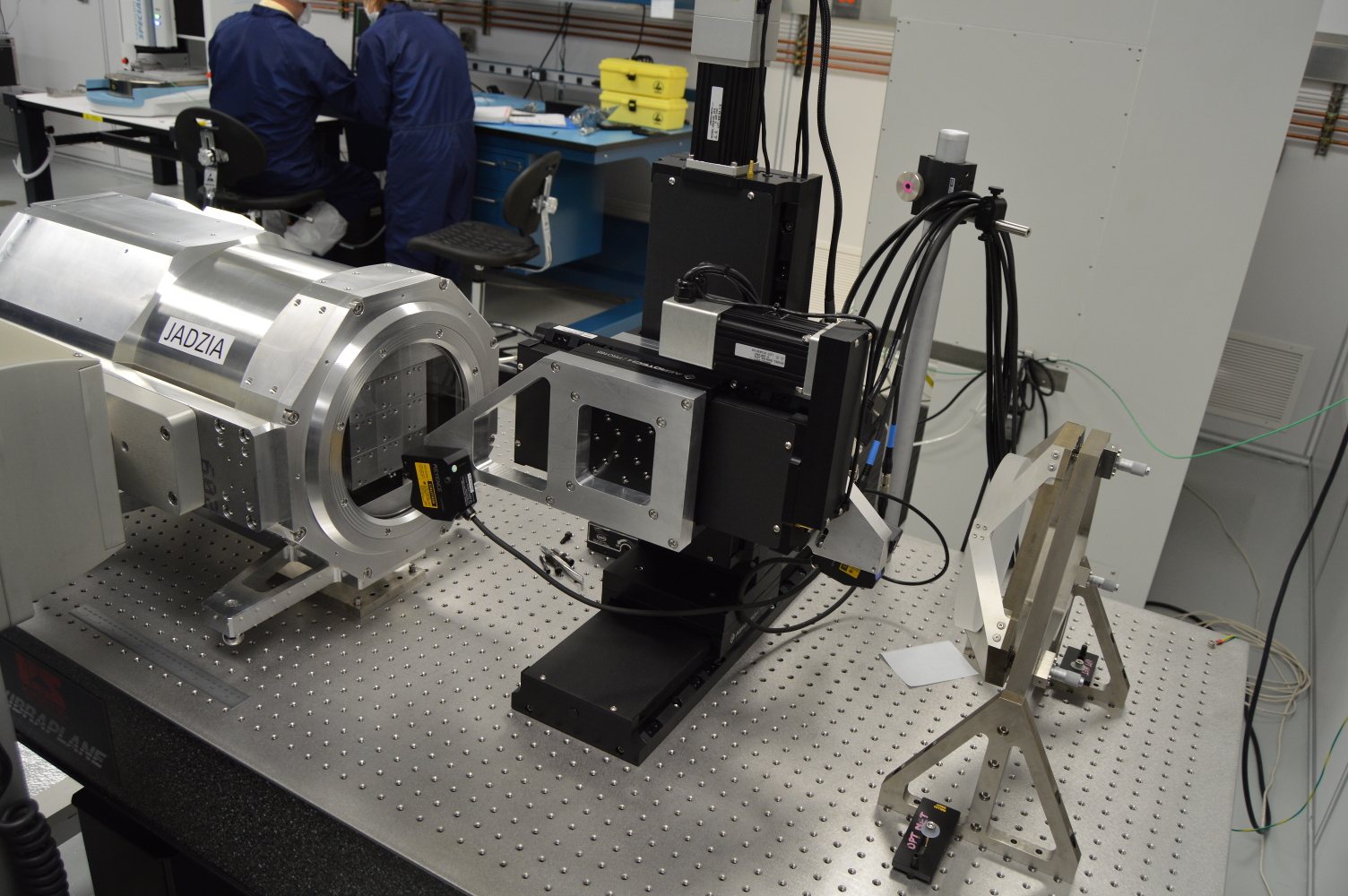

Another view.
