A Gregorian with a sub-aperture corrector for diffraction limited imaging across a .5 degree field of view and 25mm fully illuminated field. Original optical design. This has become a long term back burner project. The OTA mechanical assembly is built but I still need to have the optics made.




corrected gregorian

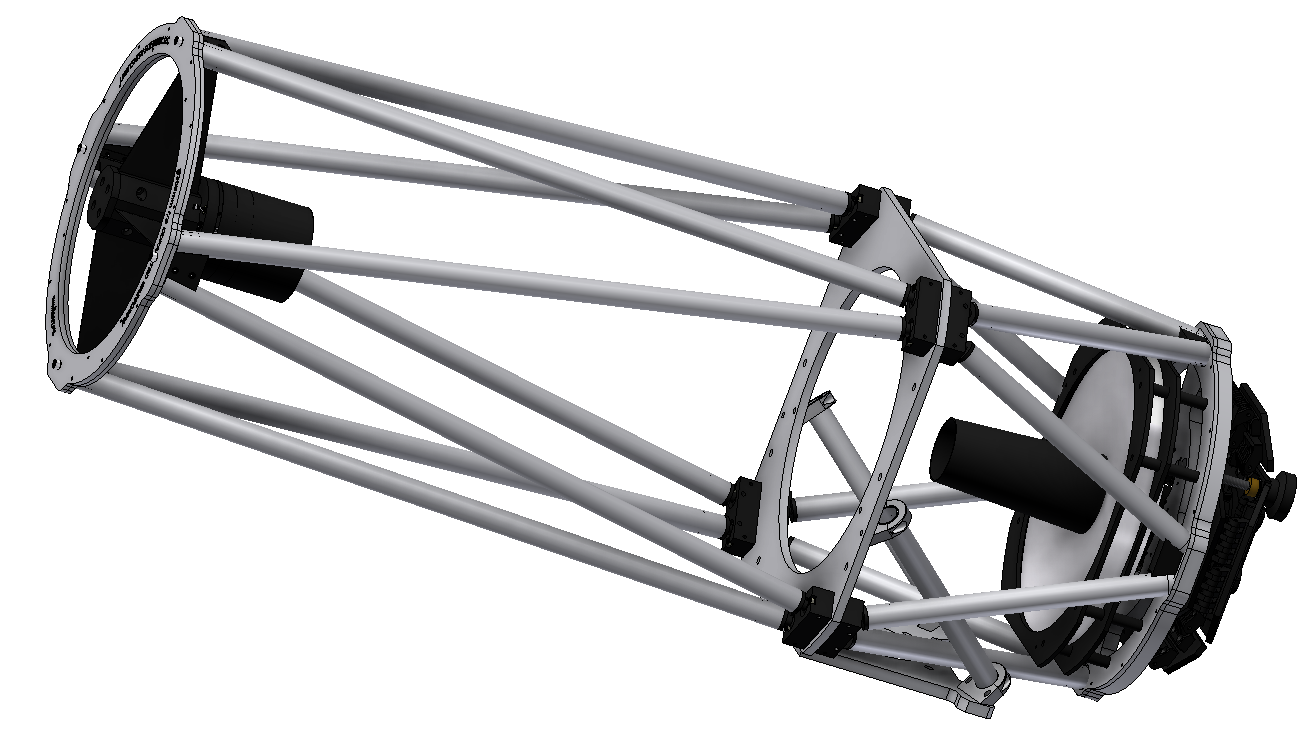

mechanical design of optical tube assembly

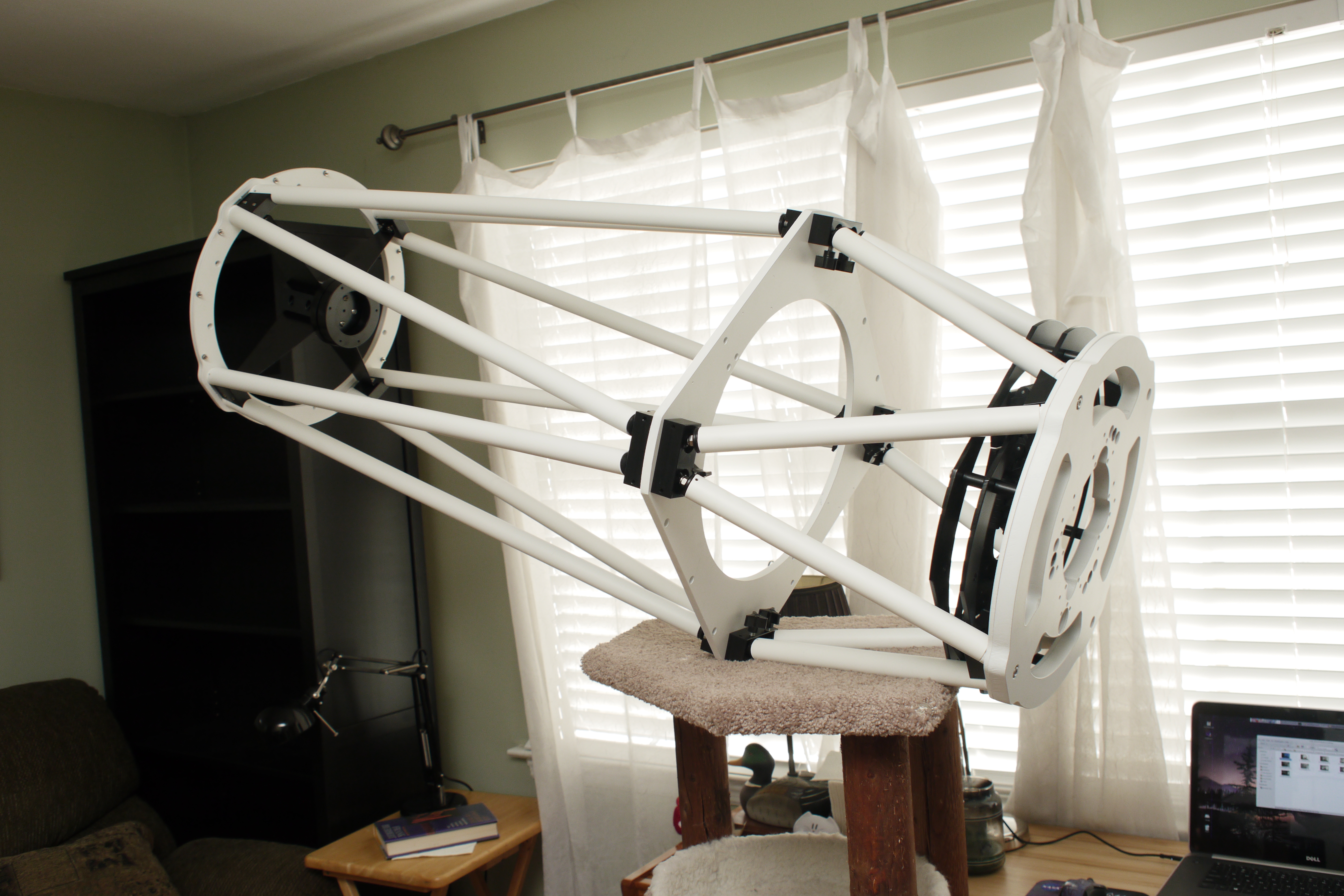

partial assembly of OTA






cross-section of primary mirror assembly, focus assembly, and corrector tube assembly




partial assembly of OTA





corrected gregorian optical design
optical design

corrected gregorian spot diagram
through-focus and -field spot diagram array
